Mobile Patient Lifts
Wizemed PL301 Patient Lift
The Wizemed PL301 is a compact stand-assist lifter designed to support safe standing and seating transfers in home care, rehabilitation, and long-term care settings. It provides smooth, efficient assistance for both users and caregivers, with an optional rehabilitation support handle for added stability during early mobility and standing training. Multiple lifting and straddle options allow easy positioning, while the 360° rotating hanger bar ensures comfortable adjustment. With a 4.7'' floor clearance, the PL301 moves easily under beds and through narrow spaces. Medical-grade silent operation reduces disturbance, and integrated safety features—including an emergency stop and manual emergency descent—ensure reliable, user-friendly performance for everyday care.
Safe and assisted standing & transfer support
Designed to support users during standing, seating, and transfer movements, reducing physical strain for both users and caregivers.
Compact solution for daily care environments
Ideal for home care, rehabilitation settings, and long-term care facilities, especially where space is limited.

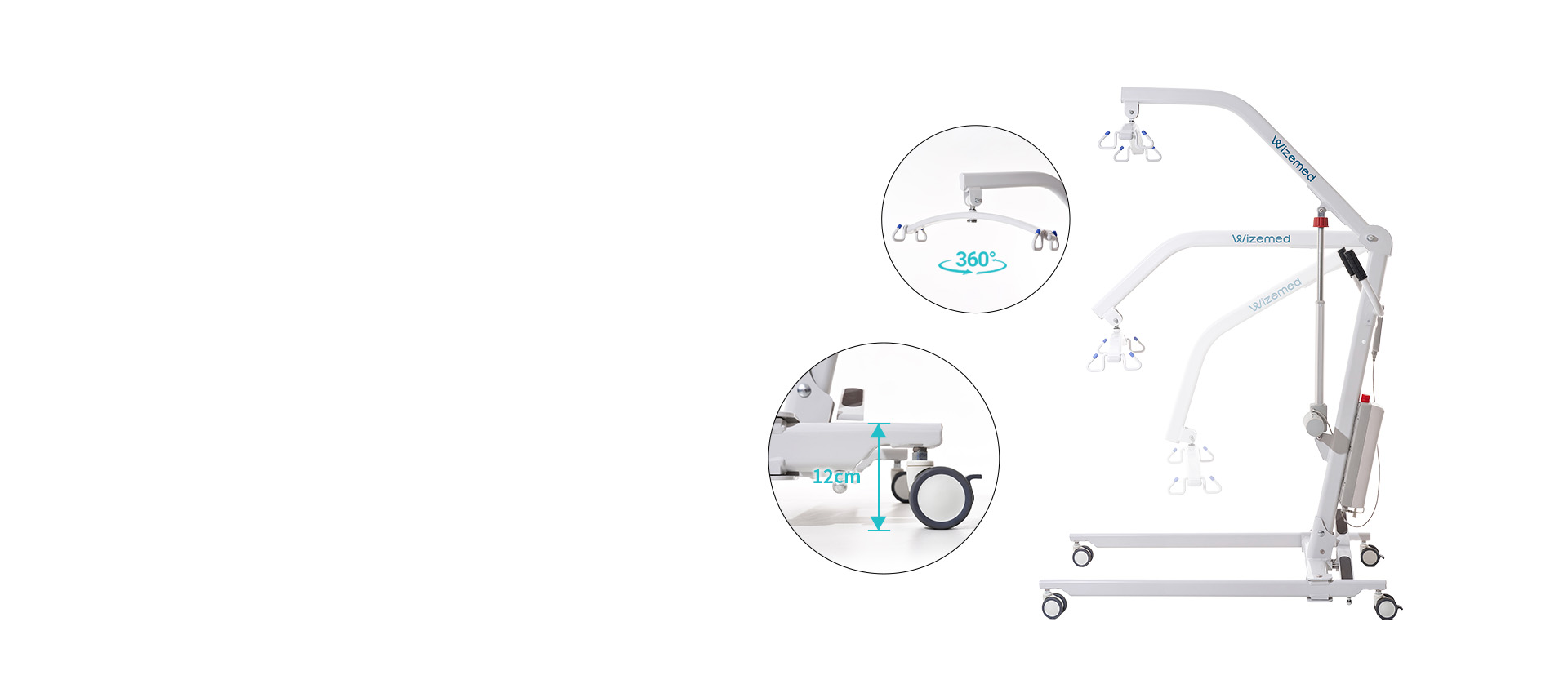

Flexible lifting with precise positioning
Multiple lifting and straddle options enable easy positioning, while the 360° rotating hanger bar ensures comfortable adjustment.
With 12 cm floor clearance, the lifter moves smoothly under beds and through narrow spaces.
Medical-grade, quiet, and safety-focused design
Silent operation minimizes disturbance. An emergency stop and manual emergency descent enhance safety and reliability for everyday care use.
Specifications & Downloads
Technical Data
| Max. Safe Load | 160kg / 25st / 352lb
|
| Lifter Weight (with spreader bar and battery) | 39.5kg / 6.2st / 87lb |
| Lifting Height Range(floor to sling bar) | 500-1910mm / 20-75.2'' |
| Leg clearance (floor to top of legs) | 130mm / 4.7'' |
| Legs Length | 1200mm / 47.2'' |
| Internal Width Legs Closed | 550mm / 21.6''
|
| Internal Width Legs Open | 1080mm / 42.5'' |
Lifting Stroke
| 1410mm / 55.5''
|
| Lifting Speed(80kg load) | 26.1mm/s |
| Lifting cycles per charge (80 kg load) | 96 times |
| Dimensions(unfolded): L*W*H | 1200*620*1350mm / 47.2*24.4*53.1''
|
| Turning Diameter | 1400mm / 55.1''
|
| Front Castor Diameter | 75mm / 2.95'' |
| Rear Castor Diameter(with brake) | 75mm / 2.95'' |
